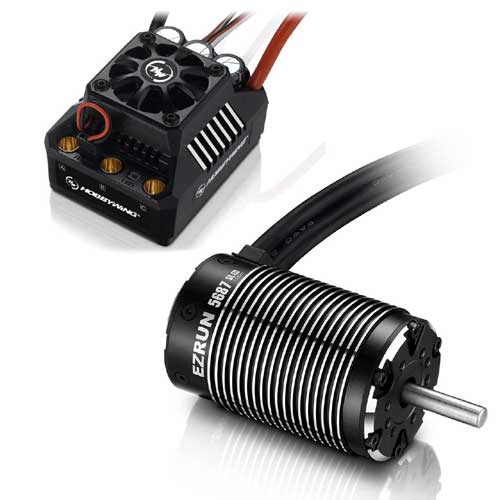

Brushless Combo Hobbywing Ezrun MAX6 5687SL-1100KVV 1:6

EzRun MAX6

Product Number: 30105000

Current: 160A

Input: 3-8S LiPo/9-24 Cells NiMH

Best Combination: EZRUN-4985/5687

Applications: 1/6th& 1/7thTouring Car/Buggy/Truck

High Reliability & Durability

Built with the most rugged and high-quality components and coupled with

cutting-edge firmware, the EZRUN MAX6 is able to deliver unmatched power

and performance for even the most hardcore of racing applications, but is also

responsive enough to protect itself from damage due to overloading due to physical

abuse, overuse or even human error.

Great Flexibility & Versatility

With incredible acceleration capabilities and a rock-solid, stable

output, the MAX6 can handle instant full-torque start-ups for

wheelies, high-speed racing on straightaways and powering

through the bumpiest terrain. The user will have the choice of

adjusting the ESC parameters as per his preference and ability.

Applicable to All Weather Conditions

The waterproof and dust-proof design allows the MAX6 to be used in all weather

conditions without any issue of damage caused to the ESC from water or dust.

High Voltage Built-in BEC

The MAX6 has adopted the world’s first HV built-in BEC with an

output current of up to 25Amp and a switchable output voltage of

6V-7.4V. The high voltage BEC is designed to handle today’s high

voltage servos on demand used by large scale vehicles.

Advanced and Secure

Electronic Switch

The MAX6 features an electronic switch with a lifespan of over

50000 on/off cycles, housed in a completely waterproof,

dust-proof and shock-resistant design.

Regular Firmware Updates

Free of Charge

You can upgrade the MAX6 with the Hobbywing USB

LINK software, a multifunction LCD program box and a laptop.

Hobbywing updates its ESC firmware regularly giving you

upgraded features more often when available.

Maintenance Free

The ESC minus the cooling fan is basically maintenance free. The cooling fan is

designed to be shockproof, which in turn will reduce damage brought on by

frequent vehicle high jumps and landings on hard surfaces.

Built-in Anti-Spark System

The MAX6 is built with internal anti-spark circuitry that protects not only battery connectors

from damage but helps to prevent physical injury due to burnt fingers from the inevitable

issue of sparking when hooking up the ESC to higher voltage battery packs (5S/6S/7S/8S).

Wide Range of Applications

MAX6 Applications:

This ESC is applicable to various 1/6th & 1/7th scale vehicles like the Traxxas XO-1, and also

suitable to various 1/8th scale heavy vehicles like the CEN GST-E. It's the ideal option for

high-end aggressively powered builds.

Specifications

Product Name   EzRun MAX6

Product Number  30105000

Type

Scale   1/6th、1/7th

Brushed/Brushless   BL

Sensored/Sensorless   SL

Waterproof   WP

Specifications

Cont./Peak Current   160A/1050A

Input   3-8S LiPo/9-24 Cells NiMH

BEC Output   Switch Mode:6V/7.4V,6A

Wires & Connectors

Input Wires   Red-10AWG-200mm*1/Black-10AWG-200mm*1

Output Wires   Black-10AWG-200mm*3

Input Connectors   No

Output Connecotors   6.5mm Famale Gold Connectors (pre-soldered onto the PCB)

Fan

Size   35.0x35.0x10.0mm

Voltage Range   5-7.4V

Powered by   Powered by BEC

ESC Programing via

SET Button on ESC   Supported

LED Program Box   Supported

LCD Program Box   Supported

WiFi Module   Supported

OTA Programmer   Supported

Program Port   FAN/Program Port

Firmware

Firmware Upgrade   Supported

Size & Weight

Size   70.0x56.0x46.5mm

Weight   240g

Applications

Motors   SL BL Motors/SD BL Motors(only in SL mode)

Vehicles   1/6th、1/7th Touring Car/Buggy/Truck

KV Rating/T Count  6S LiPo: KV≤1500/8S LiPo: KV≤1200(5892 Size Motors)

EZRUN-5687SL-1100KV

Product Number: 30402550

KV Rating: 1100kv

Best Combination:EzRun MAX6

Applications: 1/5th Light-duty & 1/6th RC Vehicles

Strong Power

With a fast acceleration response and a rock-solid, stable output, the

EZRUN 4985/5687/56113 motor can handle instant full-torque start-ups

for wheelies, high-speed racing on straightaways and powering

throught the bumpiest terrain.

Thermal Protection

When pairing the EZRUN 4985/5687/56133 motor with the Hobbywing upgraded

MAX6/MAX5 ESC, the built-in temperature sensor & port will effectively prevent the

motor from being damaged due to overheat and prolong its service life .

(*Note: the existing Hobbywing MAX5/MAX6 ESC doesn’t have the port for connecting

to the temperature sensor port on the motor.)

High Efficiency

Hobbywing’s temperature control technology has been designed to

protect the motor from being damaged by heat thus less heat more

efficient the motor will run and perform. The output performance of this

motor has an efficiency rate of up to 90% (an industry-leading level).

Compatible with EZRUN MAX5/MAX6 ESC

When pairing the EZRUN 4985/5687/56133 motor with the Hobbywing

EZRUN MAX5/MAX6 ESC, the excellent match between ESC and motor

will give you large torque plus a very smooth and linear power band.

(*Note: MAX5 pairs with 5687/56113, MAX6 pairs with 4985)

Great Construction

The use of CNC-machined hard anodized aluminum case, ultra-thin silicon steel laminations,

heat-resistant oxygen-free double insulated windings, high quality Japanese bearings, rotor

with a strong structure and output shaft made from high quality polished alloy steel

guarantees outstanding performance and super durability.

Specifications

Product Name   EZRUN-5687SL-1100KV

Product Number   30402550

Type

Scale   1/5th

Brushed/Brushless   BL

Sensored/Sensorless   SL

Pole Count   4

Relevant Parameters

KV Rating   1100

LiPo Cells   3-8S

No-load Current(A)   4.1

Size & Weight

O.D.(mm)   56(2.20in)

Length (mm)   87(3.43in)

Shaft Diameter (mm)   8.0(0.31in)

Weight (g)   916(32.31oz)

Front Bearing   D8*D22*t7(608DD/608ZZ)

Rear Bearing   D8*D22*t7

Other Parameters

Timing   0

Applications   1/5th Light-duty & 1/6th RC Vehicles
