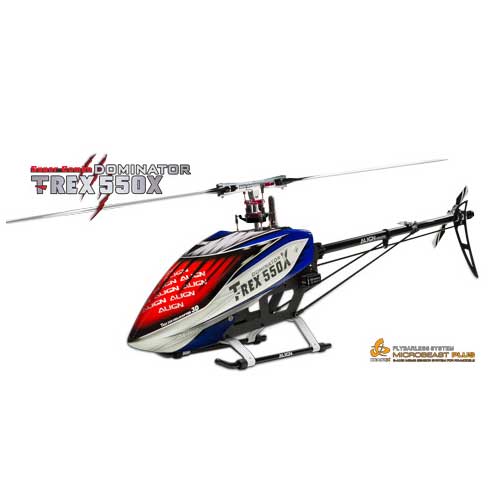

HB Align T-Rex 550X Dominator Super Combo BEASTX
- Artikelnummer:
- RH55E18X
- EAN-Code:
- 4713414000127
- Hersteller:
- Align Corp.Ltd
- Verfügbarkeit:
-
Produkt derzeit nicht auf Lager
einfach günstig bestellen
Diesen Artikel senden wir dir innerhalb Österreichs versandkostenfrei zu!
English
The NEW T-REX 550X is definitely a significant leap forward in performance, enhanced by increased power, the integration of numerous innovative design changes, and lightweight improvements. The T-REX 550X performance is outstanding!
The brand new FL Flybarless Rotor Head System utilizes an extremely low CG design, reducing resistance during 3D maneuvers while increasing flight responsiveness and precision. A progressive design adds a gloss silver and red anodizing appearance which continue our quality development based on our 700 class helicopter. The T-REX 550X main frame utilizes composite material integration technology on carbon side frame plates, including the addition of battery mounting side rails, and a top motor mount design. In addition, the T-REX 550X's lightweight design is 200~250g (Combo250g/Super Combo 200g) lighter than our pervious model, this effectively increase the power and improves flight time.
The T-REX 550X utilizes the powerful 730MX (960KV) motor and our RCE-BL100A Brushless ESC which both are highly efficient providing superior power, improving the performance of the 6S power system. The NEW DS820M/DS825M high voltage brushless servos are extremely efficient and out perform other servos in this class. To protect these servos the new high-end CNC aluminum case function as a heat sink allowing the servos to operate at a lower temperature.
With improved performance and increased power, as well as included top of the line electronic equipment. The new T-REX 550 X will arouse your enthusiasm and devotion to the T-REX Family.
Specifications
Length: 1163mm
Height: 344mm
Width: 196mm
Main Rotor Diameter: 1248mm
Main Blade Lenght: 550mm
Tail Rotor Diameter: 254mm
Motor Drive Gear: 16T
Main Drive Gear: 112T
Autorotation Tail Drive Gear: 131T
Tail Drive Gear: 34T
Drive Gear Ratio: 7:1:3.85
Weight(w/o power system): 2590g

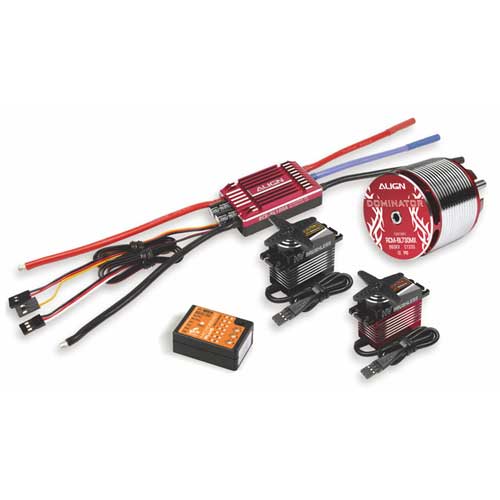

Content
1x T-REX 550X DOMINATOR
2x 550 Carbon Fiber Blade
2x 90mm 3K Carbon Fiber Tail Blade
1x 730MX Brushless Motor (960KV)
3x DS820M High Voltage Brushless Servo
1x DS825M High Voltage Brushless Servo
1x RCE-BL100A Brushless ESC
1x Microbeast PLUS Flybarless System
Required for assembly
1x Transmitter (7-channel or more,helicopter system)
1x Receiver (7-channel or more)
1x Pitch gauge or Digital Pitch Gauge
1x 6S Li-Po 2600~5200mAh battery
| Länge in mm: | 1163 |
| Breite in mm: | 196 |
| Höhe in mm: | 344 |
| Spannweite in mm: | 1248 |
| Spannweite: | 1000 - 1500 mm |
| Gewicht in g: | 2590 |
| Stromstärke in mAh: | 5200 |
| Einsatzbereich: | Outdoor |
| Anwendungsbereich: | Hubschrauber |
| Hubschraubertyp: | Flybarless-Hubschrauber |
| Im Lieferumfang enthalten: | Servos, Regler, Motor (Antrieb) |
| Motorart: | Brushless |
| Akku-Type: | LiPo (Lithium-Polymer) |
| Akku-Zellen: | 6S LiPo |
| Erfahrungslevel: | Fortgeschrittener, Profi |
