Set Futaba T32MZ-WC mit R7208SB FasstTest 2,4 GHz

T32MZ-WC Radio FASSTest26, 1S LiPo, R7208SB

Lieferumfang:

FUTABA T32MZ-WC FASSTest 26-Kanal Sonderausführung F3A/F3C World Championship

inklusive R7208SB Empfänger

Aluminum Senderkoffer

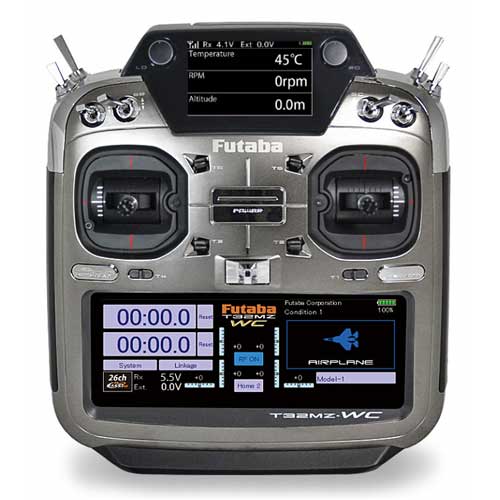

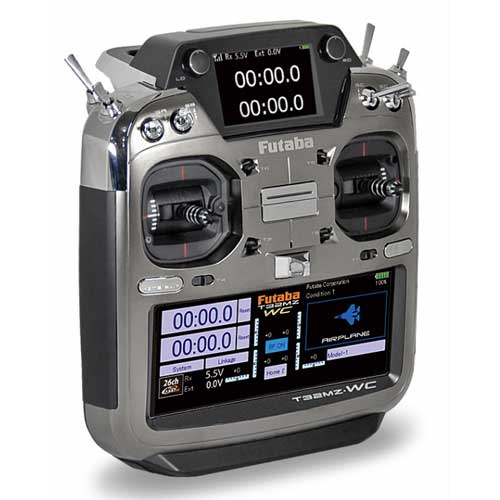

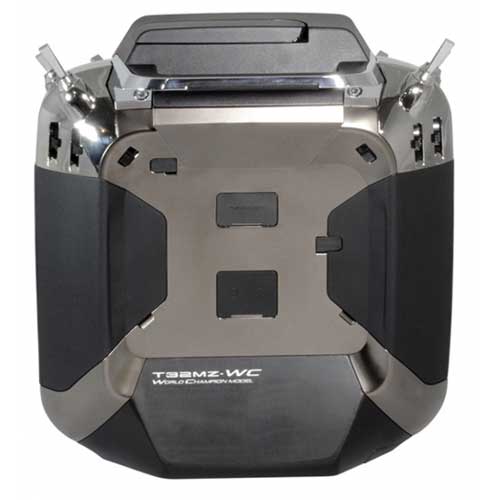

Futaba T32MZ-WC - World Champion Edition Radio with R7208SB receiver

FASSTEST SYSTEM:

The Futaba 32MZ transmitter adopted the bidirectional communication system “FASSTest”. Data from the receiver can be checked in your transmitter. FASSTest is a maximum 26 channels (linear 24 channels + switch 2 channels) 2.4 GHz dedicated system.

CHANNEL EXPANSION (MULTIPROP FUNCTION):

The multiprop function can be used by using the separately sold multiprop decoder MPDX-1. The multiprop function is a function that divides one channel into eight channels and extends the number of channels.

Up to 2 x MPDX-1 can be used, and up to 32 channels can be expanded as follows:

Linear channel – 14 channels (2 channels are used by multiprop function)

ON/OFF channel – 2 channels

Multiprop channel – 16 channels

Multiprop channels have the following differences from normal linear channels:

The resolution of the multiprop channel is lower than that of the linear channel.

Operating multiple multiprop channels simultaneously may reduce the operation response of the multiprop channel.

Multiprop channels can not use the mixing function.

S.BUS2 SYSTEM:

By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.

WINDOWS EMBEDDED COMPACT 7:

T32MZ WC utilizes the world famous Microsoft Windows Embedded Compact 7, which offers outstanding dependability and valuable resources.

COLOR LCD MAIN DISPLAY:

T32MZ WC has a HVGA (640 x 240 pixels) full color backlit LCD touch screen. The screen is manufactured of a transflective construction which enables both indoor and outdoor visibility.

COLOR LCD SUB DISPLAY:

T32MZ WC has a color LCD sub-display. It will be possible to know telemetry information separately from the main display. The sub display uses a reflective LCD which provides good visibility even outdoors.

MUSIC PLAY:

The Futaba 32MZ WC transmitter can playback WMA (Windows Media Audio) files on a microSD Card. You can enjoy music by the internal speaker or stereo headphones from the earphone jack. A switch can be assigned to start/stop your music.

VOICE RECORDING:

You can record your own voice using the internal microphone and then play back commands assigned to certain switches. Recording time is 3 seconds maximum and 24 voice files can be stored.

SECURE DATA (SD CARD):

Model data, music files, voice files, and picture files can be stored on optional microSD card. The microSD card is also used when updating the software/features of the T32MZ WC.

HIGH CAPACITY LITHIUM POLYMER BATTERY (6600 MAH):

The high capacity Lithium Polymer battery gives you extended flight time.

EDITING:

The touch panel and two enter keys allows you to edit your model in the manner that is easiest for you.

FUNCTIONS:

The internal dual processors operate the many 32MZ functions and optimize the response time. Most of the mixing functions are operated by curves which give you very precise settings.

STICKS:

Dual ball bearings support each axis. And the magnetic detection type noncontact potentiometers was newly equipped. This allows for finer and more precise operation. Also, the throttle stick is an external screw adjustment, you can choose ratchet or spring self neutral.

REPLACEABLE SWITCHES:

You can replace 4 of the toggle switches on the right and left shoulder, with optional switches (two position, three position, and momentary etc.).

VIBRATION FUNCTION:

Low voltage and other alarms are generated by a vibration motor. Alarms or vibrations to be used can be selected by the owner.

Including:

T32MZ-WC Transmitter

R7208SB Receiver

LT1F6600B Lithium Polymer Battery and AC Adapter

Switch Harness

Tool Box (includes special jig for adjustment)

Neck Strap

Manual (Short version. Find full version here)

NEW World champion double transmitter Case

TX Specs:

Operating system: 2-Stick, 26-Channels, 2.4 GHz FASSTest/FASST/T-FHSS/S-FHSS System

Power Supply: 3.8 V L1F6600B Lithium-polymer battery

Weight: 1126 g

R7208SB Specs:

FASSTest-2.4 GHz system(18 ch/12 ch mode)

S.BUS2 and S.BUS port and 8 channels for conventional system receiver

Dual antenna diversity

Size: 24.9x38.8x14.3mm

Weight: 9.9g

Power requirement: 3.7-7.4V (Voltage range: 3.5-8.4V)

Battery F/S Voltage: It sets up with a transmitter

Extra Voltage port: 0 ～ 70V DC

Features:

Sub-display

Lightweight lithium polymer battery

Micro USB charging

Transmitter equipped with GPS

Non-contact potentiometer

Highly rigid resin stick

Stick mode switching function

New receiver with high gain antenna

Adopts Windows®CE

Built-in GPS

Monitor LED

Switch lever replaceable type

Left and right slide lever (S/ST)

Digital trim

Touch panel

Edit button

SD card slot

Equipped with LT1F6600B lithium polymer battery for transmitter

Tool box

User name registration/character input

Music playback

Trainer

DLPH-2 settings new features

Receiver settings new function

S.BUS servo setting

Servo ID list display new function


Sound

Sub trim

Balance new feature

Reverse

Fail safe

End point (ATV)

Throttle cut

Idol Down

Swash settings (for helicopter only)

Timer

Dial monitor

Data reset

Servo monitor

Condition selection

AFR(D/R)

Program mixing

Sequencer new features

Fuel mixture (for airplanes and helicopters only)

Aileron differential

Flap settings

Aileron → Camber FLP

Aileron → Brake FLP

Aileron → Rudder

Air brake → ELE

Rudder → Aileron

Camber mixing

ELE → Camber FLP

Camber FLP→ELE

Butterfly

Trim mix
